Depression On A Topographic Map

Depression On A Topographic Map - The Centre for Topographic Information provides this definition of a. A temporary change in direction 35. Topographic maps are a type of contour map which uses lines to show the changing elevation in a given area.

Mountain Pass Cliff Depression Terrain Features And Contour Lines

Contour lines of depression on the right compared to a regular peak.

Depression On A Topographic Map. A contour interval is the vertical distance or difference in elevation between contour lines. Depression - A contour line with tick marks inside it indicates a depression rather than a peak. This is the massive meteor crater that struck Arizona a long time ago.

2964608 2688241 3044372 2864251. As weve seen a series of concentric closed contours ie. Topographic map showing the Afar Triangle which correlates to the shaded area in the location map shown above The Afar Triangle also called the Afar Depression is a geological depression caused by the Afar Triple Junction which is part of the Great Rift Valley in East Africa.

Contour lines on a map depict a spur with the U or V pointing away from high ground. You find the contour interval for your map in its legend. On some maps cartographers use teeth marks or hachures for depressions at craters or volcanoes because it marks the elevation goes up or down.

What is a depression on a map. Depressions Contour lines that show a depression crater or sinkhole on a map are represented by dashed lines hachure marks on the inside of a contour line. Closed contours with hatchures short lines pointing toward the center of the closure represent closed depressions.

Irregular circles are used to represent hills mountain summits knolls horns etc. So look what weve done - weve made up a new type of contour called a DEPRESSION CONTOUR. A topographic map is a type of map characterized by large-scale detail and quantitative representation of relief usually using contour lines in modern mapping but historically using a variety of methods.

Each number represents a different elevation the higher the number the higher the elevation duh and vice versa. 10022014 The volcanos topo map Click 34. Just the opposite of ordinary unhachured contours.

26012015 The closer together the inclines the steeper the hill. It could be described as an area of low ground surrounded by higher ground in all directions or simply a hole in the ground. You should also see elevations decreasing as you get near the depression.

A depressionis a low point in the ground or a sinkhole. And a point outside a contour is higher than the contour. For hachured contours a point inside a contour is lower than the contour.

A mountain for instance is shown by several concentric lines. Due to the undesirable effects resulting from the occurrence of topographic depressions most environmental modeling particularly hydrological modeling has. 29012017 In the example below weve added labels and it should be clear that its a depression.

Traditional definitions require a topographic map to show both natural and man-made features. A map is a representation of the Earth or part of it. What is a Topographic Map.

The distinctive character-istic of a topographic map is that the shape of the Earths surface is shown by contour lines. It could be described as an area of low ground surrounded by higher ground in all directions or simply a hole in the ground. Click to see full answer.

Symbology of topographic depression features a Line symbol b Point symbol Objectives Understanding the shape of the topographic surface is useful for many fields such as regional planning agriculture and forestry. 3 gradient 4D profile Bottom of page 7 solid intermitted. Index contours are bold or thicker lines that appear at every fifth contour line.

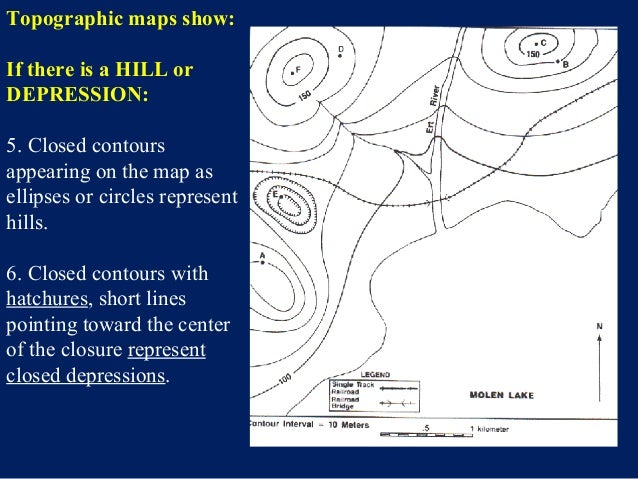

30092013 Topographic maps show. If there is a HILL or DEPRESSION. Closed contours appearing on the map as ellipses or circles represent hills.

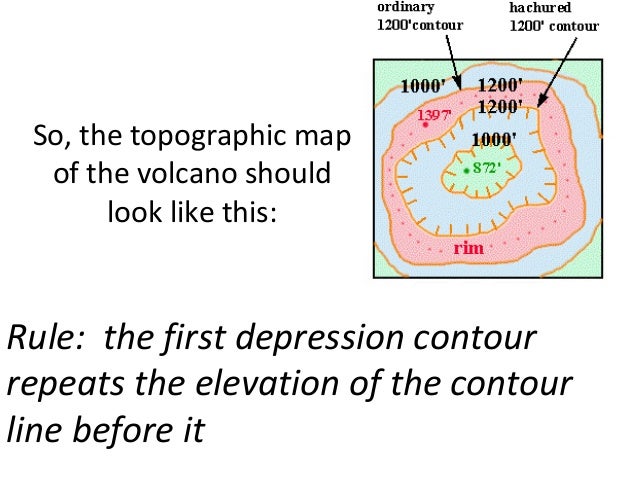

Its marked with little teeth called HACHURES. Usually only depressions that are equal to or greater than the contour interval will be shown. The elevation of the first depression contour is the same as the nearest regular contour line.

A contour line is a line drawn on a topographic map to indicate ground elevation or depression. A depression is a low point in the ground which is surrounded by higher ground in all directions. So if we look at the top of.

Another way to tell elevation is the numbers on the map. Sabkha of El Qattara Depression topographic map elevation relief. Contours make it possible to.

Sabkha of El Qattara Depression Al Petrol Abou Snan Road Giza Governorate Egypt - Free topographic maps visualization and sharing. A 3-D Look at Depression Contours C-D is a regular valley G-H is a depression. A depression is a low point in the ground or a sinkhole.

On the other hand the farther apart lines tend to indicate a depression in the landscape. And this isnt just any depression. Examples of depressions include volcanic craters sinkholes pit craters and impact craters.

Contours are imag-inary lines that join points of equal elevation on the surface of the land above or below a reference surface such as mean sea level.
